Create a Simple Gridview using Asp.Net

This Post explains "how to populate gridview with MsSql Data".By assuming you already know about creating  web application project in asp.Net.We straightly move to coding.

For this tutorial I am using Northwind Database.You can download NorthWind database from here.In this tutorial i am going to bind "Customers" table to the gridview.

Following is the Html markup consist asp:Gridview control.

AutoGeneratedColumns = false(Avoids the creating for empty rows).

DataField value maps the sql colums to the Girdview.

<asp:GridView ID="grdView" AutoGenerateColumns="false" runat="server">

                <Columns>

                    <asp:BoundField DataField="CustomerID" HeaderText="CustomerID" />

                    <asp:BoundField DataField="CompanyName" HeaderText="Customer Name" />

                    <asp:BoundField DataField="ContactName" HeaderText="Contact Name" />

                </Columns>

 </asp:GridView>

Code Behind

public partial class Default : System.Web.UI.Page
    {
        SqlCommand cmd;
        DataTable dt;
        SqlDataAdapter sda;
        protected void Page_Load(object sender, EventArgs e)
        {
            if (!this.IsPostBack)
            {
                cmd = new SqlCommand();
                dt = new DataTable();
                BindData();
            }
        }

        private void BindData()
        {
            string Constr = ConfigurationManager.ConnectionStrings["constr"].ConnectionString;
            SqlConnection sqlcon = new SqlConnection(Constr);
            cmd.Connection = sqlcon;
            cmd.CommandText = "SELECT top 10 CustomerID,CompanyName,ContactName from Customers";
            cmd.CommandType = CommandType.Text;
            sda = new SqlDataAdapter(cmd);
            sda.Fill(dt);
            grdView.DataSource = dt;
            grdView.DataBind();
        }
    }

Connection String:

Add the following Connection string to your webconfig file.

<connectionStrings>
    <add name="constr" connectionString="Data Source=DESKTOP-KSHIC44\GAMER;Initial Catalog=NORTHWND;Integrated Security=SSPI;"/>

  </connectionStrings>

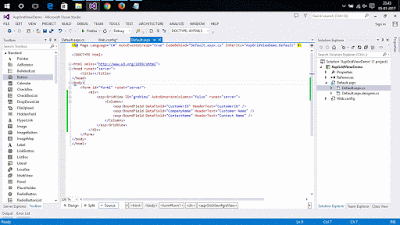

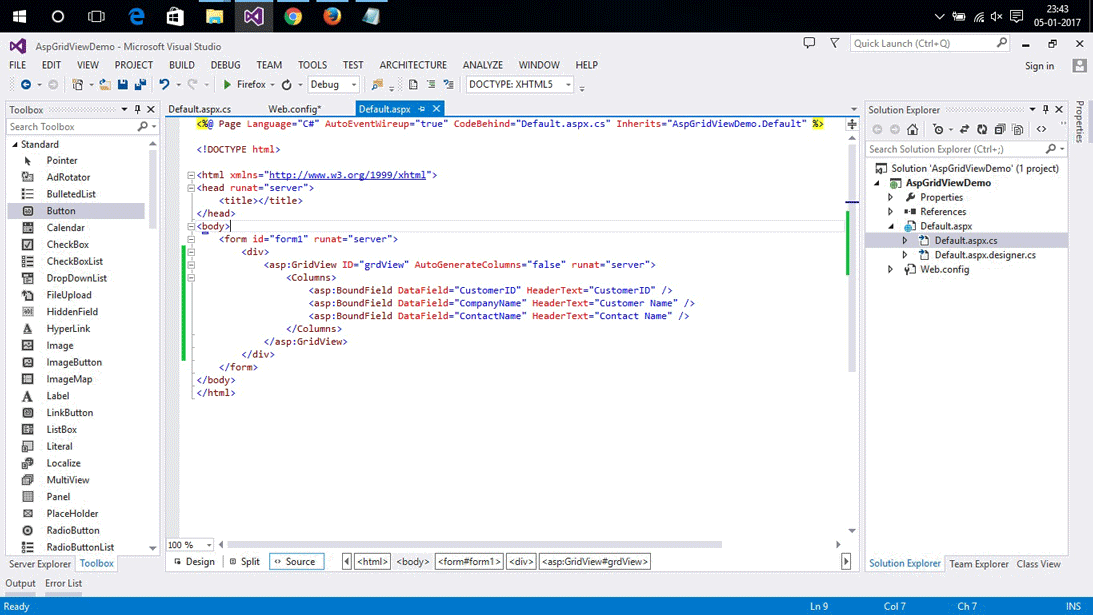

Output:
